International Time & Currency

Overview

This is an old one written a few years ago, but still a favourite. It's an International Times and major currencies converter. Internally it uses two datatables, one which is currency rates downloaded from the European Central Bank, and the other contains TimeZone information and the dominant currency for each geographical area. These two datatables are used extensively throughout the application.

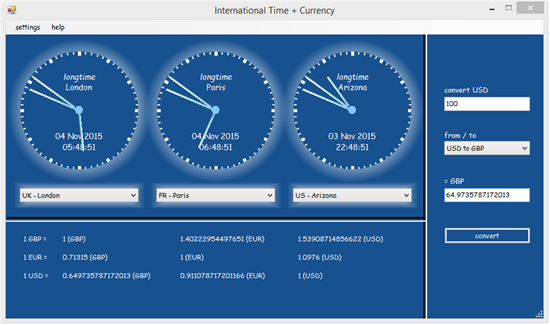

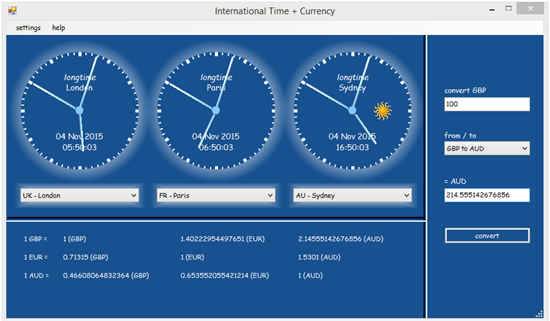

The application consists of three international timezone clocks, each of which has a ComboBox linked to it allowing changing Timezone (which also changes currency displayed).The clocks can display time for any timezone and also have a Daylight Saving Time indicator.These clocks are analog and show hour, minute, and second, and have an optional alarm which is also displayed in an analog fashion as a red alarm hand.There is a calculator for converting specific amounts from one currency unit to another.

Animating these clocks is achieved through three timers, each with a 250 millisecond interval, which draw the background of the clock (i.e. the legend, timezone region, the date, DST indicator, and a digital representation of the time in 24 hour format), then call the Shared procedures in the clockWorks class - checkAlarm, drawAlarmHand, drawHands. These methods sound the alarm at the appropriate time, and complete the drawing of the clock face.

The clockWorks Class

This contains three Shared methods for checking and sounding alarms, and drawing hands on the analog clocks:

Public Class clockWorks
    '' global alarms list
    Public Shared alarms As New List(Of alarm)

    Public Shared clock1AlarmForm As Form
    Public Shared clock2AlarmForm As Form
    Public Shared clock3AlarmForm As Form

    Public Shared minutePic As Bitmap = New Bitmap(My.Resources.MINUTE1)
    Public Shared secondPic As Bitmap = New Bitmap(My.Resources.SECOND1)
    Public Shared hourPic As Bitmap = New Bitmap(My.Resources.HOUR1)
    Public Shared centerPic As Bitmap = New Bitmap(My.Resources.CENTRE)

    Public Shared Sub checkAlarm(ByVal placeName As String, ByVal code As String, ByVal alarmTime As TimeSpan, ByVal timeOffset As DateTimeOffset, ByRef clock As Form)
        '"hh:mm tt"

        Dim alarm As alarm = alarms.Where(Function(a) a.placeName = placeName AndAlso a.code = code).FirstOrDefault
        If alarmTime.Hours = timeOffset.Hour AndAlso alarmTime.Minutes = timeOffset.Minute Then
            alarms(alarms.FindIndex(Function(a) a Is alarm)).alarmSounded = True
            clock = New aFrm1(placeName.Substring(5), timeOffset.ToString("hh:mm tt"))
            clock.ShowDialog()
        End If

    End Sub

    Public Shared Sub drawAlarmHand(ByVal g As Graphics, ByVal alarmTime As TimeSpan)

        g.SmoothingMode = Drawing2D.SmoothingMode.HighQuality
        g.InterpolationMode = Drawing2D.InterpolationMode.HighQualityBicubic

        Dim redPen1 As New Pen(Color.Red, 1)
        Dim redPen3 As New Pen(Color.Red, 3)
        Dim redPen5 As New Pen(Color.Red, 5)

        Dim angleDegHour As Single
        Dim angleRadHour As Single
        Dim lineX2 As Single
        Dim lineY2 As Single

        '' the alarm hand is 3 different thickness lines
        '' rather than a picture like the other hands

        angleDegHour = CSng((alarmTime.Hours * 30) + (alarmTime.Minutes * 0.5))

        'Turn degrees to radians (because of the sin and cos operations)
        angleRadHour = CSng(Math.PI * angleDegHour / 180)
        'Calculate X2 and Y2
        lineX2 = CSng(96 + Math.Sin(angleRadHour) * 60)
        lineY2 = CSng(96 - Math.Cos(angleRadHour) * 60)

        'draw the line (5 pixel thickness, 60 pixels long)
        g.DrawLine(redPen5, 96, 96, lineX2, lineY2)

        'Calculate X2 and Y2
        lineX2 = CSng(96 + Math.Sin(angleRadHour) * 63)
        lineY2 = CSng(96 - Math.Cos(angleRadHour) * 63)

        'draw the line (3 pixel thickness, 63 pixels long)
        g.DrawLine(redPen3, 96, 96, lineX2, lineY2)

        'Calculate X2 and Y2
        lineX2 = CSng(96 + Math.Sin(angleRadHour) * 65)
        lineY2 = CSng(96 - Math.Cos(angleRadHour) * 65)

        'draw the line (1 pixel thickness, 65 pixels long)
        g.DrawLine(redPen1, 96, 96, lineX2, lineY2)

    End Sub

    Public Shared Sub drawHands(ByVal g As Graphics, ByVal timeOffset As DateTimeOffset)

        g.SmoothingMode = Drawing2D.SmoothingMode.HighQuality
        g.InterpolationMode = Drawing2D.InterpolationMode.HighQualityBicubic

        '' draw the hour hand
        g.RotateTransform(CSng(-90 + ((timeOffset.Hour * 30) + (timeOffset.Minute * 0.5))))

        g.DrawImage(hourPic, -2, -2)
        g.ResetTransform()


        '' draw the minute hand
        g.TranslateTransform(96, 96)

        g.RotateTransform(CSng(-90 + (((timeOffset.Minute * 60) + timeOffset.Second) * 0.1)))

        g.DrawImage(minutePic, -2, -2)
        g.ResetTransform()

        '' draw the second hand
        g.TranslateTransform(96, 96)
        g.RotateTransform(-90 + (timeOffset.Second * 6))
        g.DrawImage(secondPic, -2, -2)
        g.ResetTransform()

    End Sub


End Class

The getCurrencyRates Class

This contains just one Shared function that downloads currency rates and creates and returns that as a Datatable. These currency rates are published daily by the European Central Bank in an online xml file:

Imports <xmlns:alias="http://www.ecb.int/vocabulary/2002-08-01/eurofxref Jump ">

Public Class getCurrencyRates

    Public Shared Function getRatesAsDatatable() As DataTable

        Dim xml As XDocument = XDocument.Load("http://www.ecb.int/stats/eurofxref/eurofxref-daily.xml Jump ")

        Dim dt As New DataTable

        Dim items = From node In xml...<alias:Cube>...<alias:Cube>...<alias:Cube> _
                    Select New With { _
                    .code = node.@currency, _
                    .rate = node.@rate}

        dt.Columns.Add("code")
        dt.Columns.Add("EUR")

        For Each i In items
            dt.Columns.Add(i.code)
        Next

        Dim dr As DataRow

        Dim firstRow As Boolean = True
        For Each i In items
            Dim columns() As String
            If firstRow Then
                dr = dt.NewRow
                ReDim columns(dt.Columns.Count - 1)
                columns(0) = "EUR"
                columns(1) = (1).ToString
                dr.ItemArray = columns
                dt.Rows.Add(dr)
                firstRow = False
            End If
            ReDim columns(dt.Columns.Count - 1)
            columns(0) = i.code
            columns(1) = i.rate
            dr = dt.NewRow
            dr.ItemArray = columns
            dt.Rows.Add(dr)
        Next

        firstRow = True
        For Each row As DataRow In dt.Rows
            If firstRow Then
                dt.Rows(0).Item(dt.Rows(0).Item(0).ToString) = 1
                firstRow = False
            Else
                dt.Rows(0).Item(row.Item(0).ToString) = 1 / CDbl(row.Item(1).ToString)
                row.Item(row.Item(0).ToString) = 1
            End If
        Next

        For c As Integer = 2 To dt.Columns.Count - 1
            For r As Integer = 1 To dt.Rows.Count - 1
                dt.Rows(r).Item(dt.Columns(c).ColumnName) = CDbl(dt.Rows(0).Item(dt.Columns(c).ColumnName)) / CDbl(dt.Rows(0).Item(dt.Rows(r).Item("code").ToString))
            Next
        Next

        Return dt

    End Function

End Class

The timeZones Class

This creates and returns a Datatable containing all international TimeZones:

Public Class timeZones
    Public Shared Function GetSystemTimeZones() As DataTable
        Dim linesByCountry() As String = My.Resources._2DigitCountryCodes.Split(New String() {Environment.NewLine}, StringSplitOptions.None)

        Dim dt As New DataTable
        dt.Columns.Add("region")
        dt.Columns.Add("tzID")
        dt.Columns.Add("cc")

        Dim dr As DataRow

        Dim lines() As String = My.Resources.CCbyCity.Split(New String() {Environment.NewLine}, StringSplitOptions.None)

        For Each tz As TimeZoneInfo In TimeZoneInfo.GetSystemTimeZones
            If Not tz.ToString.Contains("Coordinated Universal Time") AndAlso Not tz.ToString.Contains("International Date Line West") Then
                Dim parts() As String = tz.ToString.Split(New String() {") "}, StringSplitOptions.None)
                Dim regions() As String = parts(1).Split(New String() {", "}, StringSplitOptions.None)
                For Each r As String In regions
                    If r = "Mid-Atlantic" Then Continue For
                    Dim cc() As String
                    Dim line As String = lines.Where(Function(s) s.StartsWith(r) OrElse s.Contains(r)).FirstOrDefault
                    If line = Nothing Then
                        Continue For
                    Else
                        cc = line.Split(","c)
                    End If

                    If cc.Count > 1 Then

                        r = linesByCountry.FirstOrDefault(Function(s) s.Substring(5) = r)

                        If r Is Nothing OrElse r.Trim = "" Then Continue For

                        r = r.Trim

                        dr = dt.NewRow
                        dr.ItemArray = New String() {r, tz.Id, cc(1)}
                        dt.Rows.Add(dr)
                        If r.Contains("(US & Canada)") Then
                            dr = dt.NewRow
                            dr.ItemArray = New String() {"CA - " & r.Substring(5).Trim, tz.Id, "CAD"}
                            dt.Rows.Add(dr)
                        End If

                    End If

                Next
            End If
        Next

        Return dt

    End Function
End Class

Extended ComboBox

The extended ComboBoxes allow country names to be displayed in the ToolStripStatusLabels below the ComboBox as you move the mouse over the dropped down list. The ComboBox needs to be subclassed to get a Handle to the dropdown window which is used to create a NativeWindow class where the WM_MOUSEMOVE message is used to identify the item below the mousepointer and display the related country name in the ToolStripStatusLabel below the ComboBox.

Imports System.Runtime.InteropServices

Public Class comboboxEx
    Inherits ComboBox

    Private Const WM_CTLCOLORLISTBOX As Integer = &H134

    Dim label As ToolStripStatusLabel

    Public Sub setUpLabels(ByVal lbl As ToolStripStatusLabel)
        label = lbl
    End Sub

    Protected Overrides Sub WndProc(ByRef m As System.Windows.Forms.Message)
        MyBase.WndProc(m)
        If m.Msg = WM_CTLCOLORLISTBOX Then
            Dim n As New nWindow(Me, label)
            n.AssignHandle(m.LParam)
        End If
    End Sub

    Protected Overrides Sub OnDropDownClosed(ByVal e As System.EventArgs)
        label.Text = ""
        MyBase.OnDropDownClosed(e)
    End Sub

End Class

Public Class nWindow
    Inherits NativeWindow

    Private combo As comboboxEx
    Private countries() As String
    Dim label As ToolStripStatusLabel

    Public Sub New(ByVal cb As comboboxEx, ByVal lbl As ToolStripStatusLabel)
        combo = cb
        countries = My.Resources.countries.Split(New String() {Environment.NewLine}, StringSplitOptions.None)
        label = lbl
    End Sub

    Public Declare Function GetScrollInfo Lib "user32" Alias "GetScrollInfo" (ByVal hWnd As IntPtr, _
                    ByVal n As Integer, <MarshalAs(UnmanagedType.Struct)> ByRef lpScrollInfo As SCROLLINFO) As Integer

    <StructLayout(LayoutKind.Sequential)> _
    Public Structure SCROLLINFO
        Public cbSize As Integer
        Public fMask As Integer
        Public nMin As Integer
        Public nMax As Integer
        Public nPage As Integer
        Public nPos As Integer
        Public nTrackPos As Integer
    End Structure

    Private Const SB_ENDSCROLL As Integer = 8

    Const SBS_VERT As Integer = 1
    Const SIF_RANGE As Integer = 1
    Const SIF_PAGE As Integer = 2
    Const SIF_POS As Integer = 4
    Const SIF_TRACKPOS As Integer = 10
    Const SIF_ALL As Integer = (SIF_RANGE Or SIF_PAGE Or SIF_POS Or SIF_TRACKPOS)

    Private Const WM_MOUSEMOVE As Integer = &H200

    Private lastIndex As Integer = -1

    Protected Overrides Sub WndProc(ByRef m As System.Windows.Forms.Message)
        If m.Msg = WM_MOUSEMOVE Then
            Dim itemHeight As Integer = combo.GetItemHeight(0)
            Dim si As New SCROLLINFO
            si.fMask = SIF_ALL
            si.cbSize = Marshal.SizeOf(si)
            GetScrollInfo(Me.Handle, SBS_VERT, si)

            Dim newIndex As Integer = si.nPos + (New Point(m.LParam.ToInt32).Y \ itemHeight)
            If lastIndex <> newIndex And newIndex <= combo.Items.Count - 1 And newIndex >= 0 Then
                lastIndex = newIndex
                Dim newItem As DataRowView = DirectCast(combo.Items(lastIndex), DataRowView)
                label.Text = countries.First(Function(s) s.Substring(0, 2) = newItem.Item(0).ToString.Substring(0, 2)).Substring(5)
            End If
        End If
        MyBase.WndProc(m)
    End Sub

End Class

Download the project here
